Additional Information:

• Machine weight* 2715kg / 5985lbs
• Hitch Multi-positional drawbar
• Cutting width 4.60m / 15′ 1″
• Working machine width 4.79m / 15′ 9″
• Transport machine width 2.70m / 8′ 11″
• Maximum working length 4.91m / 16′ 2″
• Transport length 4.83m / 15′ 11″
• Deck height** 0.23m / 9″
• Transport height 2.06m / 6′ 9″
• Cutting height 25mm – 400mm (1″ – 16″)
• Cutting capacity 100mm / 4″
• Recommended tractor HP 100hp / 75kW
• Wing working angles 45° up / 15° down
• Power take-off speed 1000rpm
• Gearbox [splitter] Cast Iron housing
• Gearbox [rotor gearboxes (x3)] Cast Iron housing
• Input Shaft 1-3/8” Z6 SFT 6 tractor end
• Gearbox lubricant [splitter] EP80-90W or GL-4 / GL-5 oil
• Gearbox lubricant [rotor] 85W-140 oil
• Gearbox oil capacity
• [splitter gearbox] 2.7 litres / 4.7 pints
• Gearbox oil capacity
• [rotor gearboxes (x3)] 4.3 litres / 7.6 pints
• Deck construction All welded construction
• Deck material thickness 6mm (1/4″)
• Side skirt material thickness 5mm (3/16″)
• Skid construction Replaceable bolt on skid shoes

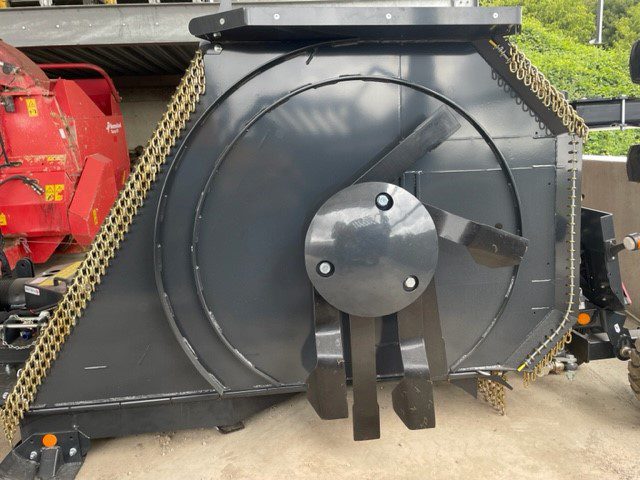

• Anti-scalp dish 6mm (1/4″) pan round with blade holder bar
• Blades standard (x9)
• 12mm (1/2″) 30 Carbon Boron hardened and tempered
• Free swinging high lift
• low friction. Handed
• Blades Starcut (x9)
• 12mm (1/2″) 30 Carbon Boron hardened
• and tempered. Free swinging – low friction.
• Non-handed
• Blade bolts M24 C/W shank grade 8.8
• Blade tip speed (1000rpm) 84mps / 16535fpm
• Driveline ASAE Category 6
• Driveline protection 2-way slip clutches on rotor gearboxes.
• Overrun on input shaft
• Centre deck tailwheel mount
• assembly Tubular welded walking axle
• Wing deck tailwheel mount
• assemblies Tubular welded standard axles
• Tailwheels (x8) 600-9 10 PLY pneumatic tyre with steel rim
• Front guard Single chain guards on each deck
• Rear guard Single chain guards on each deck
• * With front and rear single chain guards ** Underside of deck to skid

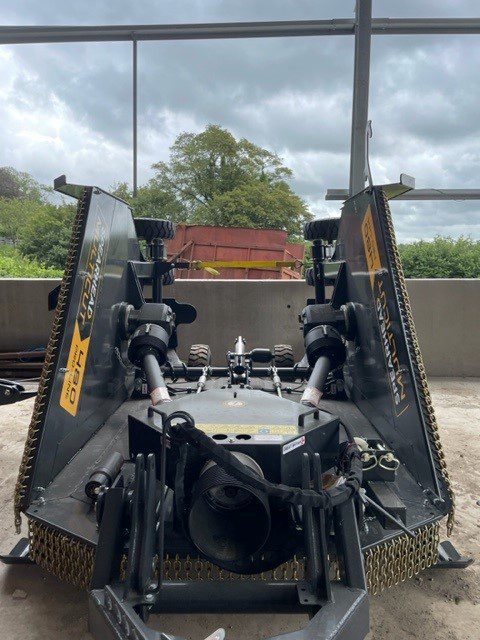

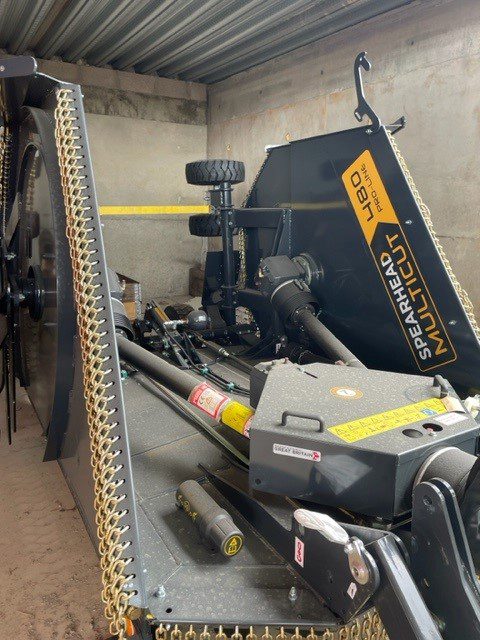

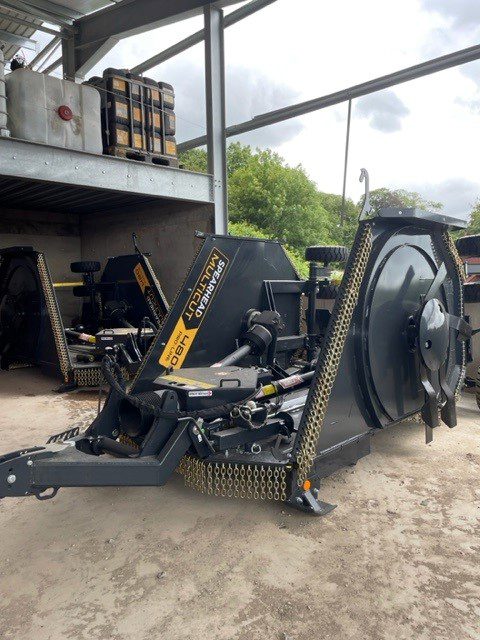

• STANDARD SPECIFICATION MULTICUT 480 PROLINE
